Answered E3dV6 Nozzel size question. Update:Posted a picture to compaire .25 and .4 nozzel.

Discussion in 'General Questions' started by Robert Foreman, Aug 12, 2016.

Thread Status:
Not open for further replies.
  1. Robert Foreman

    Joined:
    Feb 16, 2016
    Messages:
    88
    Likes Received:
    30
    I want to start using a .25mm nozzel to print small cards with lettering on them. When I print with the .4mm nozzel the setting are 210c to 220c pla at a default speed of 60mm per second. Question is what speed should I use with the .25mm nozzel and should I drop the temps some also?

    Thanks

  2. deuel18

    deuel18 Member

    Joined:
    Feb 12, 2015
    Messages:
    42
    Likes Received:
    4
    What about the bed? Do you have a heated bed? In my experience with Cura 2.0, it doesnt even use my heated bed. It does however an initial print later at about .15mm height - and it works. Keep the temp 210c or 220c and you should be fine.


    Sent from my iPhone using Tapatalk

  3. Robert Foreman

    Joined:
    Feb 16, 2016
    Messages:
    88
    Likes Received:
    30
    I run the bed at 65c for all my pla prints.

  4. Geof

    Geof Volunteer Moderator
    Staff Member

    Joined:
    Nov 9, 2015
    Messages:
    6,728
    Likes Received:
    2,328
    Whenever I go for fine detail I cut my print speed in half then experiment up, I typically don't have to mess with the temps

  5. mark tomlinson

    mark tomlinson ༼ つ ◕_ ◕ ༽つ
    Staff Member

    Joined:
    Feb 21, 2013
    Messages:
    23,479
    Likes Received:
    7,303
    speed, layer size, temperature all these things need to change.

    Layer size and speed are close to linear (if you cut one in half the other needs to go down by 50% too).

    0.25 nozzle probably needs about a 0.1 layer height (you need to experiment with various ones) and speed at least half of your 0.4. Temperature will likely go down a bit as well but, do some test prints to find the new sweet spot for whatever roll you are printing from.

    Robert Foreman likes this.
  6. deuel18

    deuel18 Member

    Joined:
    Feb 12, 2015
    Messages:
    42
    Likes Received:
    4
    Maybe try adding some brim also for easier removal from heated bed.


    Sent from my iPhone using Tapatalk

  7. Robert Foreman

    Joined:
    Feb 16, 2016
    Messages:
    88
    Likes Received:
    30
    Thanks I thought I may need to drop the speed some but wanted to make sure.

    Thanks again.

  8. mark tomlinson

    mark tomlinson ༼ つ ◕_ ◕ ༽つ
    Staff Member

    Joined:
    Feb 21, 2013
    Messages:
    23,479
    Likes Received:
    7,303
    Good luck.
    Your if your temperature settings need a tweak it will be nowhere near as drastic as the speed and layer size.

  9. danzca6

    danzca6 Well-Known Member

    Joined:
    Jul 27, 2015
    Messages:
    2,161
    Likes Received:
    1,077
    Hey let's see a print when you are done to show off that detail. Been thinking playing with more nozzle sizes.

    Geof likes this.
  10. Robert Foreman

    Joined:
    Feb 16, 2016
    Messages:
    88
    Likes Received:
    30
    Thanks Mark.

    I will print the same thing with the .4 and the .25 and post the picture of both.

    danzca6, Rigmarol, Geof and 1 other person like this.
  11. Robert Foreman

    Joined:
    Feb 16, 2016
    Messages:
    88
    Likes Received:
    30

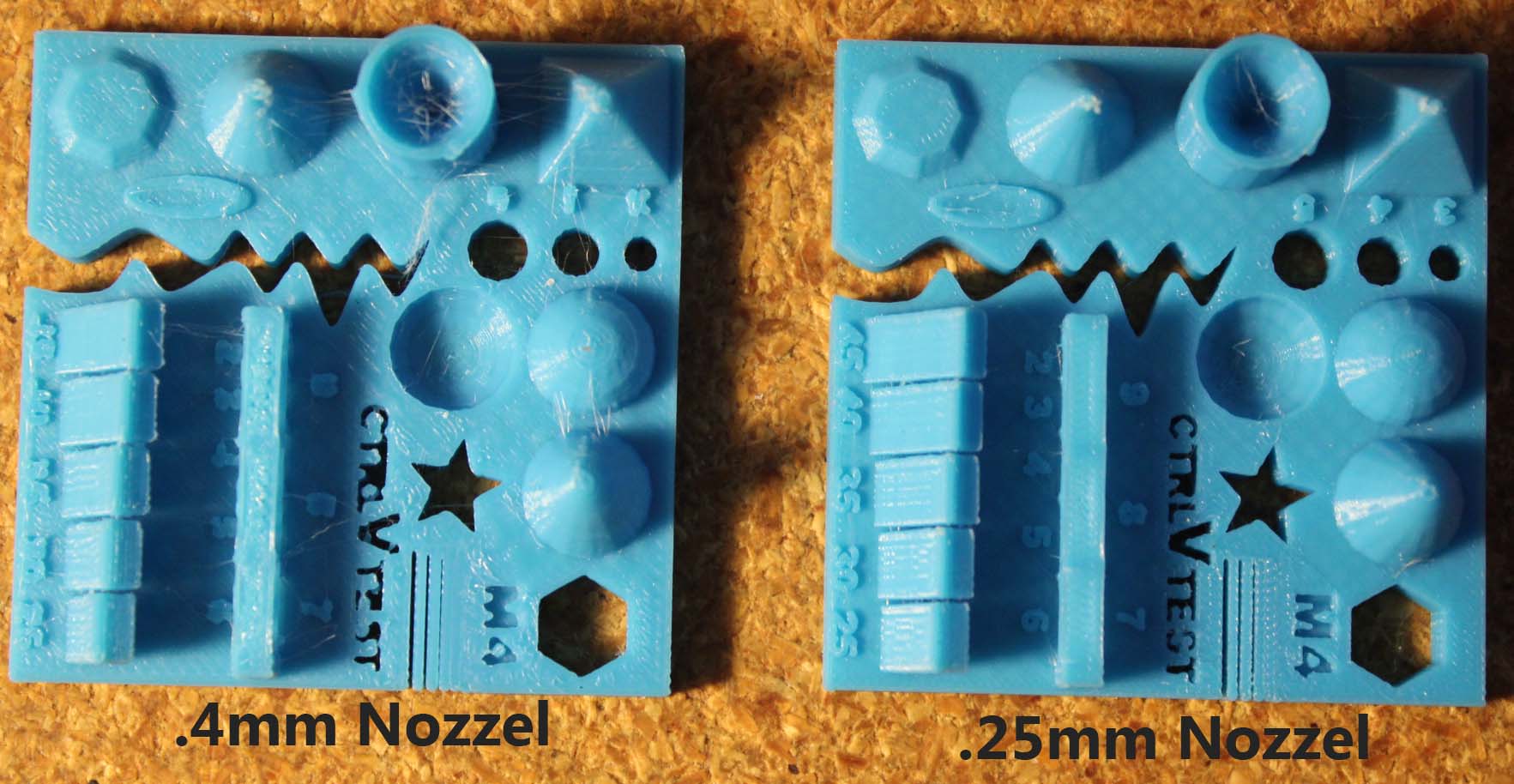

    Ok here is a side by side picture of a .4mm and a .25mm nozzel[​IMG]
    As you can see the .25 nozzel did a great job of printing the numbers and letters.


    Settings in Simplfy 3D
    Layer Hight .1
    Top Layers 4
    Bottom Layers 4
    Shells 2
    1st Layer Hight 100%
    1st Layer width 100%
    Default speed 30mm/s
    outline under speed 70%
    Solid Infill under speed 100%
    x/y Axis movement speed 80mm/s
    Z Axis 16.7mm/s
    Infill 30%

    #11 Robert Foreman, Aug 13, 2016
    Last edited: Aug 14, 2016
    WheresWaldo and Rigmarol like this.
  12. danzca6

    danzca6 Well-Known Member

    Joined:
    Jul 27, 2015
    Messages:
    2,161
    Likes Received:
    1,077
    Wow.. Huge difference on the letter and number details. Very nice option to remember. Thanks for the share.

    Rigmarol likes this.
  13. Rigmarol

    Rigmarol Well-Known Member

    Joined:
    May 14, 2016
    Messages:
    544
    Likes Received:
    280
    Great info Thanks!

  14. WheresWaldo

    WheresWaldo Volunteer ( ͠° ͟ʖ ͡°)
    Staff Member

    Joined:
    Feb 18, 2015
    Messages:
    5,905
    Likes Received:
    3,593
    Since 3D printing is all about compromises, what was the time comparison between the 0.4 mm and 0.25 mm nozzle prints?

  15. Robert Foreman

    Joined:
    Feb 16, 2016
    Messages:
    88
    Likes Received:
    30
    .25 was 03:37:31
    .4 was 02:48:20

    So just about an hour which is not bad. I forgot to include the infill was at 30%(I am going to add that into the setting in the other post).

  16. danzca6

    danzca6 Well-Known Member

    Joined:
    Jul 27, 2015
    Messages:
    2,161
    Likes Received:
    1,077
    That's not bad really. If detail is my goal for a part, then time isn't a big deal. That's a little more than half again the initial time, but like Waldo says it's all about compromise.

  17. WheresWaldo

    WheresWaldo Volunteer ( ͠° ͟ʖ ͡°)
    Staff Member

    Joined:
    Feb 18, 2015
    Messages:
    5,905
    Likes Received:
    3,593
    @danzca6 remember that the particular model is rather small and the difference is about 30%, so as the model grows the time will too.

  18. danzca6

    danzca6 Well-Known Member

    Joined:
    Jul 27, 2015
    Messages:
    2,161
    Likes Received:
    1,077
    Oh no doubt. I had tried printing a medal for a friend for a run he did but the details were lost with the .4 nozzle. So this would have been great. Now doing an 8 inch tall print off something would take a lot of time since not only are you doing .1 mm layers but also allowing the print way down for the smaller nozzle.
